Understanding Solar Batteries and Hybrid Inverters: Components, Science, and What to Look For

In a hybrid grid solar setup, solar batteries and hybrid inverters are critical components that enable homeowners to store excess solar energy, optimize energy use, and maintain power during outages. The synergy between a solar battery and a hybrid inverter ensures efficient energy storage and delivery, reducing reliance on the grid and maximizing cost savings. This blog post explores the intricate details of what makes up a solar battery and hybrid inverter, the science behind their operation, and key features to look for when selecting equipment to ensure performance, longevity, and compatibility in a hybrid grid system.

What Is a Solar Battery?

A solar battery stores energy generated by solar panels for later use, typically in the form of chemical energy in lithium-ion cells. In a hybrid grid setup, batteries charge from solar power during the day and discharge to power the home at night or during peak demand, with the grid as a backup. The most common chemistry for residential solar batteries is lithium-ion, specifically lithium iron phosphate (LiFePO4) or nickel-manganese-cobalt (NMC), due to their high efficiency and cycle life.

Components of a Solar Battery

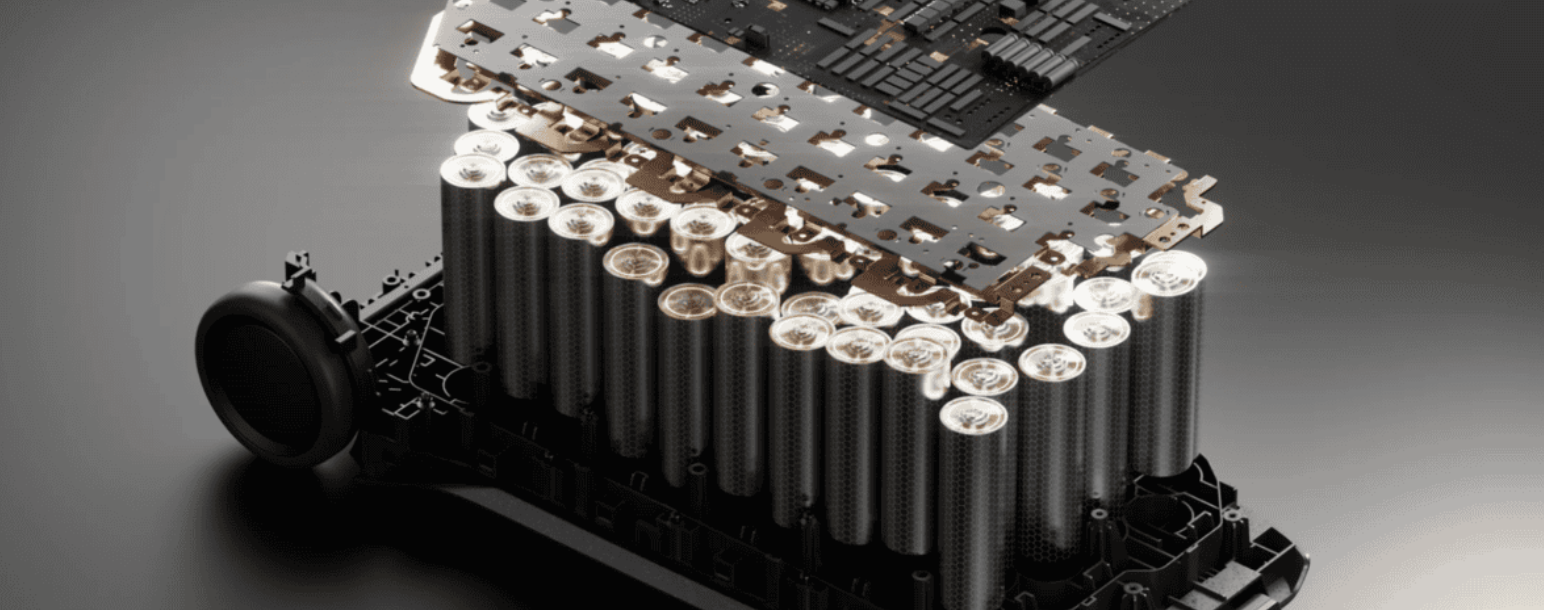

  1. Battery Cells:
    • Description: The core of the battery, where electrochemical reactions store and release energy. LiFePO4 cells are common in residential systems like the Fox ESS EQ4800, offering 6,000–10,000 cycles at 90% depth of discharge (DoD).
    • Science: LiFePO4 cells consist of a cathode (lithium iron phosphate), an anode (graphite), an electrolyte (lithium salt in an organic solvent), and a separator. During charging, lithium ions move from the cathode to the anode through the electrolyte, storing energy. During discharge, ions flow back to the cathode, releasing energy. LiFePO4’s stable crystal structure minimizes degradation, ensuring long cycle life.
    • What to Look For: Choose batteries with LiFePO4 chemistry for durability and safety (lower risk of thermal runaway). Check cycle life (e.g., >6,000 cycles) and DoD (e.g., 90%) in the specs.
  2. Battery Management System (BMS):
    • Description: An electronic system that monitors and controls cell parameters (voltage, current, temperature, state of charge [SoC], state of health [SoH]).
    • Science: The BMS uses algorithms to balance cell voltages, prevent overcharging/over-discharging, and regulate temperature. For example, it adjusts charging rates to avoid lithium plating (at low SoC) or electrolyte decomposition (at high SoC), which degrade capacity. Active balancing redistributes charge among cells to ensure uniform wear.
    • What to Look For: A robust BMS with real-time monitoring, cell balancing, and safety features (overcharge/over-discharge protection, thermal management). Ensure compatibility with communication protocols like CAN or RS485 for integration with inverters.
  3. Enclosure and Cooling System:
    • Description: The physical housing protects cells from environmental factors, with cooling (active or passive) to manage heat.
    • Science: High temperatures (>25°C) accelerate solid electrolyte interphase (SEI) layer growth, reducing capacity, while low temperatures (<0°C) increase internal resistance, limiting performance. Passive cooling (e.g., natural convection in Fox ESS EQ4800) or active cooling (fans/liquid systems) maintains optimal temperatures (15°C–25°C).
    • What to Look For: IP65-rated enclosures for dust and water resistance, suitable for indoor/outdoor installation. Prefer passive cooling for quieter operation and lower maintenance, but ensure adequate ventilation.
  4. Connectors and Wiring:
    • Description: High-voltage connectors (e.g., for Fox ESS EQ4800’s 96–512V range) link battery modules and the inverter.
    • Science: Efficient connectors minimize resistance losses, ensuring high round-trip efficiency (typically 90–95% for LiFePO4 batteries). Proper wiring prevents voltage drops and overheating.
    • What to Look For: High-quality, low-resistance connectors compatible with the inverter. Scalable designs (e.g., stackable modules) for future capacity expansion.

How a Solar Battery Works

  • Charging: Solar panels generate DC electricity, which the inverter directs to the battery. The BMS controls the charging process, ensuring cells charge within safe voltage limits (e.g., 3.0–3.65V per LiFePO4 cell). Electrons flow from the cathode to the anode, storing energy as lithium ions intercalate into the anode.
  • Discharging: When the home needs power, the battery releases stored energy. Lithium ions move back to the cathode, generating a current that the inverter converts to AC for household use.
  • Lifespan Factors: Degradation occurs due to SEI layer growth, electrode micro-cracks, and electrolyte breakdown, accelerated by deep discharges, high C-rates (charge/discharge rates), and temperature extremes. Proper management (e.g., 20%–80% SoC, low C-rates) can extend lifespan to 10–20 years.

What Is a Hybrid Inverter?

A hybrid inverter is a multifunctional device that manages energy flow between solar panels, the battery, the home, and the grid. Unlike traditional grid-tied inverters, hybrid inverters can operate in grid-connected and off-grid modes, making them ideal for hybrid setups with battery storage.

Components of a Hybrid Inverter

  1. DC-to-AC Inverter:
    • Description: Converts DC electricity from solar panels or the battery to AC for household use.
    • Science: Uses pulse-width modulation (PWM) or maximum power point tracking (MPPT) to optimize conversion efficiency (typically 95–98%). Transformerless designs (e.g., Fox ESS H1(G2)) reduce energy losses and weight.
    • What to Look For: High conversion efficiency (>95%) and dual MPPTs for multiple panel strings, ensuring optimal solar energy harvest.
  2. AC-to-DC Rectifier (Battery Charger):
    • Description: Converts AC from the grid to DC for battery charging when solar production is insufficient.
    • Science: Regulates charging voltage and current to match the battery’s requirements, minimizing heat and stress. For example, the Fox ESS AC1(G2) charger supports low-rate charging (e.g., 0.5C) to reduce battery wear.
    • What to Look For: Adjustable charge rates and compatibility with the battery’s voltage range (e.g., 96–512V for Fox ESS EQ4800).
  3. MPPT Controller:
    • Description: Tracks the optimal voltage and current from solar panels to maximize power output.
    • Science: MPPT algorithms adjust the panel’s operating point to the maximum power point, improving efficiency by 20–30% compared to non-MPPT systems, especially under varying sunlight conditions.
    • What to Look For: Multiple MPPT inputs (e.g., dual MPPTs in Fox ESS H1(G2)) for flexibility with panel orientations and high tracking efficiency (>99%).
  4. Control Unit and Software:
    • Description: Manages energy flow, prioritizing solar, battery, or grid power based on user settings and real-time conditions.
    • Science: Uses predictive algorithms to optimize energy use, factoring in solar production, household demand, and TOU tariffs. Communicates with the BMS via CAN/RS485 to ensure safe battery operation.
    • What to Look For: User-friendly software (e.g., Fox Cloud 2.0) with real-time monitoring, customizable settings, and tariff integration. Local control options (e.g., Modbus) for reliability.
  5. Switching and Safety Mechanisms:
    • Description: Includes relays and circuit breakers to manage grid connectivity and islanding (off-grid operation during outages).
    • Science: Ensures seamless transitions between grid and battery power, protecting equipment from voltage spikes or faults. Anti-islanding prevents back-feeding during grid outages, ensuring safety.
    • What to Look For: Fast switching (<20ms) for uninterrupted power and robust safety features (e.g., surge protection, fault detection).

How a Hybrid Inverter Works

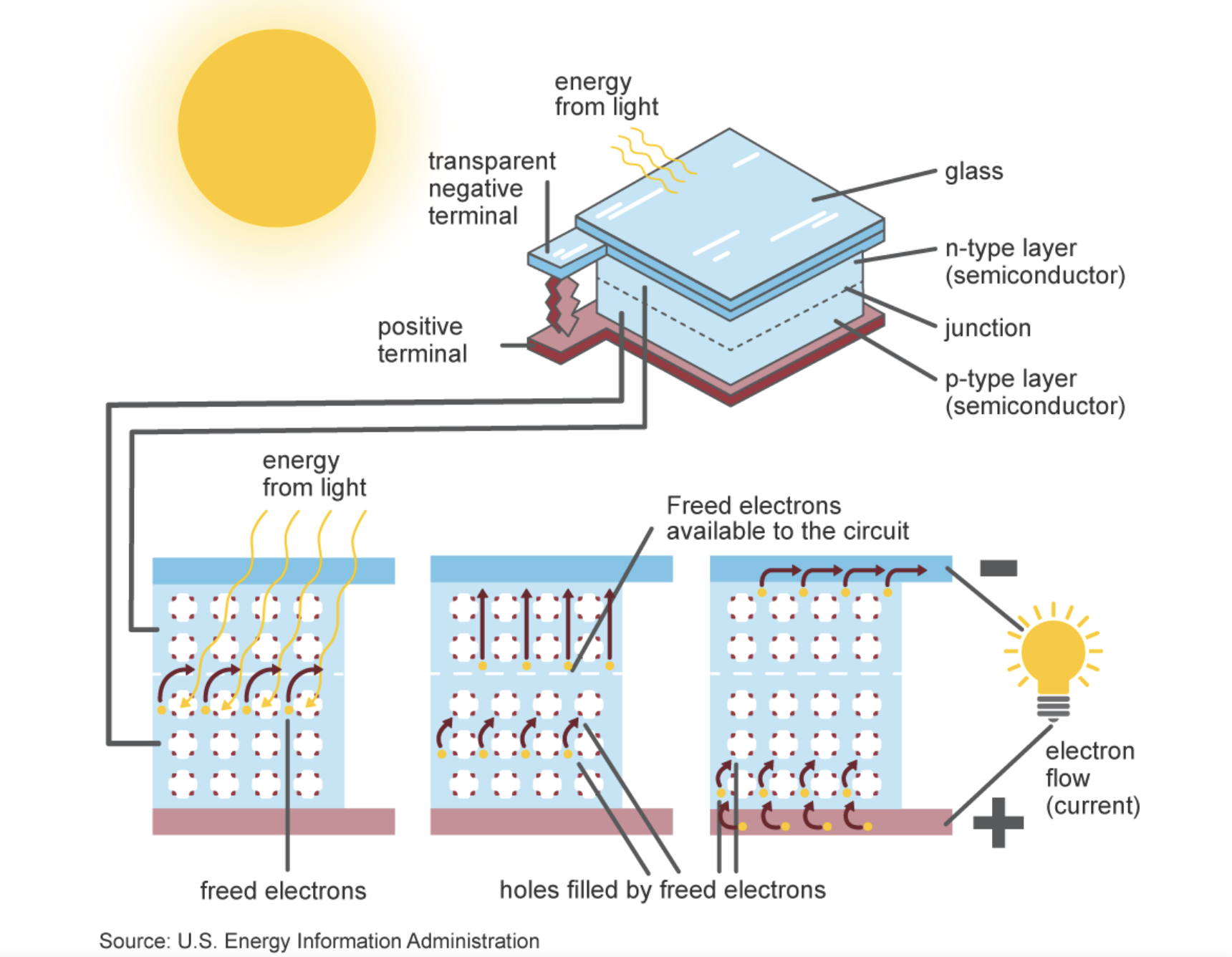

  • Solar Energy Harvesting: The MPPT controller extracts maximum power from solar panels, converting DC to AC via the inverter for immediate home use or battery charging.
  • Battery Management: The inverter directs excess solar energy to the battery, coordinating with the BMS to charge within safe parameters. During discharge, it converts battery DC to AC for the home.
  • Grid Interaction: The inverter draws grid power to charge the battery or power the home when solar/battery capacity is insufficient. It can export excess solar energy to the grid in net-metering setups.
  • Backup Mode: During outages, the inverter isolates the home from the grid (islanding) and supplies power from the battery/solar panels, ensuring continuity.

Science Behind Battery and Inverter Synergy

The interaction between the solar battery and hybrid inverter is governed by electrochemical and electrical principles, optimized by sophisticated control systems:

  • Energy Storage and Release: The battery’s electrochemical reactions (lithium-ion movement) store and release energy, with the BMS ensuring safe operation. The inverter’s high-efficiency conversion minimizes losses, preserving stored energy.
  • Power Flow Optimization: The inverter’s control unit uses algorithms to prioritize energy sources (solar > battery > grid), reducing battery cycling and stress. For example, limiting battery use to 60% DoD (20%–80% SoC) can extend cycle life by 30–50%.
  • Thermal Management: Both the BMS and inverter monitor temperatures, adjusting charge/discharge rates to maintain 15°C–25°C, slowing SEI growth and electrode degradation.
  • Round-Trip Efficiency: The combined efficiency of battery storage (90–95%) and inverter conversion (95–98%) determines overall system performance. High efficiency reduces heat, extending component lifespan.

What to Look for in Solar Batteries and Hybrid Inverters

When selecting equipment, prioritize features that enhance performance, longevity, and compatibility:

Solar Battery

  1. Chemistry and Cycle Life:
    • Choose LiFePO4 for durability (6,000–10,000 cycles) and safety. Example: Fox ESS EQ4800 offers >6,000 cycles at 90% DoD.
  2. BMS Capabilities:
    • Look for real-time monitoring, cell balancing, and safety protections. Ensure customizable SoC limits (e.g., 20%–80%) and low C-rate support (e.g., 0.5C).
  3. Scalability:
    • Select modular batteries (e.g., Fox ESS Energy Cube) for future expansion without replacing the system.
  4. Efficiency and Warranty:
    • Aim for >90% round-trip efficiency and a warranty of 10+ years with at least 70% capacity retention.
  5. Environmental Rating:
    • Ensure IP65 or higher for outdoor durability and passive cooling for low maintenance.

Hybrid Inverter

  1. Efficiency and MPPT:
    • Seek >95% conversion efficiency and dual MPPTs for optimal solar harvesting. Example: Fox ESS H1(G2) achieves 97% efficiency.
  2. Battery Compatibility:
    • Verify voltage range and communication protocol compatibility (e.g., CAN/RS485 for Fox ESS EQ4800).
  3. Software and Monitoring:
    • Choose inverters with intuitive software (e.g., Fox Cloud 2.0) offering real-time data, TOU tariff integration, and local control options (e.g., Modbus).
  4. Backup Capability:
    • Ensure fast switching (<20ms) for seamless backup during outages and sufficient power output (e.g., 5–10 kW) for household needs.
  5. Safety and Durability:
    • Look for anti-islanding, surge protection, and IP65-rated enclosures for reliability in harsh conditions.

Best Practices for Maximizing Performance and Longevity

To optimize the battery and inverter system, follow these scientifically grounded practices:

  • **Maintain 20%–80%

System: C Range**: Configure the BMS via the inverter’s software to limit SoC to 20%–80%, reducing electrochemical stress and extending cycle life by 30–50%. For the EQ4800, this means using ~2.8 kWh of its 4.66 kWh capacity per cycle.

  • Science: Limiting SoC avoids high-voltage stress and lithium plating, slowing SEI layer growth and capacity fade.
  • Minimize Deep Discharges: Set a minimum SoC (minSoC) of 20% to avoid deep discharges (e.g., 90% DoD). Use grid power during high-demand periods to prevent over-discharging.
    • Science: Shallow cycles (e.g., 60% DoD) reduce electrode wear and electrolyte degradation, potentially increasing cycle life from 6,000 to 9,000+ cycles.
  • Optimize Charge/Discharge Rates: Use the inverter’s software to set low C-rates (e.g., 0.5C, or 2.33 kW for the EQ4800) to minimize heat and mechanical stress.
    • Science: Low C-rates reduce lithium-ion diffusion stress and heat, preserving electrode integrity and minimizing micro-cracks.
  • Control Temperature: Install the battery in a shaded, ventilated area (15°C–25°C). Ensure the BMS and inverter adjust rates during temperature extremes.
    • Science: Optimal temperatures prevent accelerated SEI growth and capacity loss, extending lifespan by slowing chemical degradation.
  • Schedule Cell Balancing: Use the BMS to perform periodic slow charging (e.g., 4A to 100%) for cell balancing, as supported by Fox ESS systems.
    • Science: Balancing equalizes cell voltages, preventing uneven wear and maintaining overall capacity.
  • Leverage Smart Energy Management: Use the inverter’s software (e.g., Fox Cloud 2.0) to prioritize solar charging during peak production and grid charging during low-cost TOU periods, reducing battery cycling and stress.
    • Science: Fewer cycles and lower rates minimize electrochemical wear, extending lifespan.

Example: Fox ESS H1(G2)/AC1(G2) with EQ4800

The Fox ESS H1(G2) hybrid inverter and AC1(G2) charger, paired with the EQ4800 battery, exemplify a well-integrated system:

  • Battery (EQ4800): LiFePO4 chemistry, 4.66 kWh per module, >6,000 cycles at 90% DoD, IP65 enclosure, advanced BMS with CAN/RS485 communication.
  • Inverter (H1(G2)): 97% efficiency, dual MPPTs, 96–512V battery compatibility, fast switching (<20ms) for backup, and Fox Cloud 2.0 for monitoring and tariff integration.
  • Performance: The system optimizes energy flow, supports shallow cycling (20%–80% SoC), and enables low-rate charging, potentially extending lifespan to 15–20 years with proper management.

Conclusion

Solar batteries and hybrid inverters are the backbone of a hybrid grid setup, enabling efficient energy storage and delivery. The battery’s LiFePO4 cells, BMS, and enclosure work together to store energy electrochemically, while the inverter’s DC-to-AC conversion, MPPT, and control systems manage power flow. By understanding the science—electrochemical reactions, thermal management, and electrical efficiency—users can select equipment with high cycle life, robust BMS, and advanced software. Practices like maintaining 20%–80% SoC, low C-rates, temperature control, and cell balancing, supported by systems like the Fox ESS H1(G2)/EQ4800, ensure longevity and performance. When choosing equipment, prioritize compatibility, efficiency, safety, and smart features to maximize the value and sustainability of your solar energy system.
