Maximizing Domestic Battery Lifespan in a Hybrid Grid Setup

As solar energy adoption grows, hybrid grid setups—combining solar panels, battery storage, and grid connectivity—are becoming increasingly popular for homeowners. A key component of these systems is the domestic battery, typically lithium-ion, which stores excess solar energy for use when generation is low. However, battery lifespan is a critical concern, as degradation over time can reduce efficiency and increase replacement costs. This blog post outlines the smartest strategies to extend the life of domestic batteries in a hybrid grid setup, focusing on optimal charge management, cycling practices, and other key factors.

Understanding Battery Degradation

Battery degradation occurs due to chemical and physical changes within the battery cells, influenced by factors like charge cycles, temperature, and depth of discharge (DoD). In a hybrid grid setup, where batteries are cycled daily to store solar energy and discharge for household use, managing these factors is essential to maximize lifespan. Most domestic batteries, such as lithium-ion (e.g., FoxEES), are rated for 5,000–10,000 cycles but can degrade faster if mismanaged.Key Strategies to Extend Battery Lifespan.

Key Strategies to Extend Battery Lifespan

1. Maintain a 20% to 80% State of Charge (SoC) Range

Charging a battery to 100% or discharging it to 0% stresses the cell chemistry, accelerating degradation. Operating within a 20% to 80% SoC range significantly reduces wear. For example:

• Why it works: Limiting the SoC avoids extreme voltage levels that strain the battery’s electrodes.

• Implementation: Most modern battery management systems (BMS) allow users to set charge limits. Configure your system to charge up to 80% and discharge no lower than 20%. For a 10 kWh battery, this means using 6 kWh of the capacity per cycle.

• Trade-off: This reduces usable capacity but can extend lifespan by up to 30–50%, depending on the battery chemistry.

2. Minimize Deep Discharge Cycles

Deep discharges (high DoD) increase stress on battery cells, reducing cycle life. A partial discharge (e.g., 60% DoD) is less taxing than a full discharge (100% DoD).

• Best practice: Aim for shallow cycles, ideally keeping DoD below 60%. For instance, a battery cycled daily at 50% DoD may last 7,000 cycles, while one at 90% DoD may only last 4,000 cycles.

• Hybrid grid advantage: In a hybrid setup, the grid can supplement power during high-demand periods, preventing deep discharges. Program your system to switch to grid power when the battery reaches the lower SoC threshold (e.g., 20%).

3. Optimize Charge and Discharge Rates

High charge and discharge rates (C-rates) generate heat and stress battery cells, accelerating degradation.

• Recommendation: Use a low C-rate, ideally below 0.5C (e.g., for a 10 kWh battery, charge/discharge at 5 kW or less). Many solar inverters allow you to set these rates.

• Hybrid grid tip: Leverage grid power during peak loads (e.g., appliance surges) to reduce battery strain. For example, if your household demand spikes to 8 kW, draw 3 kW from the battery and the rest from the grid.

4. Manage Temperature Exposure

Temperature is a critical factor in battery longevity. Lithium-ion batteries perform best between 15°C and 25°C (59°F–77°F). High temperatures accelerate chemical reactions that degrade cells, while low temperatures can reduce capacity temporarily.

• Best practice: Install batteries in a shaded, well-ventilated area, ideally indoors (e.g., a garage). Avoid direct sunlight or uninsulated spaces prone to extreme heat or cold.

• Advanced tip: Some BMS include active cooling or heating. Ensure these are enabled to maintain optimal temperatures, especially in regions with harsh climates.

5. Schedule Charging with Solar Production

In a hybrid grid setup, batteries can charge from either solar or grid power. To maximize lifespan:

• Prioritize solar charging: Charge during peak solar production (midday) to avoid grid charging at high rates, which can stress the battery.

• Time-of-use (TOU) optimization: If your utility offers TOU rates, charge from the grid during off-peak hours (e.g., nighttime) at a low C-rate to supplement solar charging. This reduces strain and leverages cheaper electricity.

6. Regular Maintenance and Monitoring

A well-maintained battery system lasts longer. Key practices include:

• Monitor BMS data: Regularly check SoC, DoD, and temperature via the BMS app or interface to ensure the system operates within optimal parameters.

• Firmware updates: Keep the BMS and inverter firmware updated to benefit from manufacturer improvements in charge algorithms.

• Annual inspections: Have a professional inspect connections, cooling systems, and battery health to catch issues early.

7. Use Smart Energy Management Systems

Modern hybrid systems often include energy management software that optimizes battery usage based on weather, load patterns, and grid tariffs.

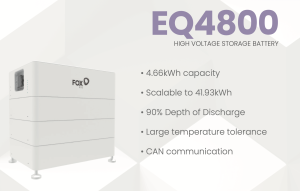

• Example: Systems like FoxEES can predict solar production and household demand, adjusting SoC and cycling to minimize wear.

• Recommendation: Invest in a system with predictive analytics to automate optimal charging and discharging, reducing manual oversight.

  8. Reduce the Number of Batteries

  • Simplify Your Bank: Using fewer batteries reduces connections and resistance, ensuring more uniform charging and discharging, which helps all batteries age evenly

  • This means that the system needs to be designed properly to the solar input and the load you are using in winter and summer. This is Why a Solar designer like us Solarwind  Technology will sell you the best equipment for your needs by proper detailed analysis.

Additional Tips for Longevity

• Avoid idle periods at full charge: If the battery is fully charged (e.g., during low usage), discharge it slightly to maintain a 50–80% SoC.

• Cycle regularly but minimally: Batteries benefit from regular use, but avoid unnecessary cycling. In a hybrid setup, balance battery and grid usage to prevent over-cycling.

• Consider battery chemistry: Lithium iron phosphate (LFP) batteries, common in hybrid setups, are more durable than nickel-manganese-cobalt (NMC) batteries and better suited for frequent cycling.

• • Leverage Virtual Power Plants (VPPs): Some hybrid systems let you participate in VPPs, which can optimize battery use and provide financial incentives. Ensure your system’s charge/discharge settings align with VPP requirements without compromising battery health1.

  • Blackout Protection: Choose hybrid systems with “blackstart” capability, allowing your solar panels to recharge batteries during grid outages—this ensures you’re not forced into deep discharge during emergencies

Summary Table: Battery Lifespan Strategies

---

Conclusion

Extending the lifespan of domestic batteries in a hybrid grid setup requires a combination of smart charge management, shallow cycling, temperature control, and leveraging the grid to reduce battery stress. By maintaining a 20%–80% SoC range, minimizing deep discharges, optimizing charge rates, and using smart energy management systems, homeowners can significantly prolong battery life—potentially doubling the number of usable cycles. These practices not only reduce replacement costs but also enhance the sustainability of your solar energy system. For tailored advice, consult with a solar energy professional to optimize your specific setup.  Solarwind Technology
