Extending the Lifespan of Fox ESS H1(G2)/AC1(G2) with EQ4800 Battery Beyond Its Warranty

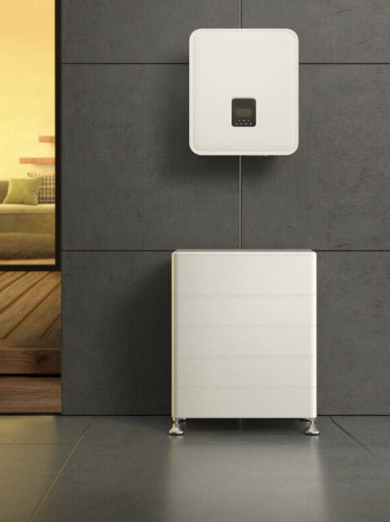

The Fox ESS H1(G2) hybrid inverter and AC1(G2) AC charger, paired with the EQ4800 high-voltage lithium-ion battery, form a robust energy storage system for residential hybrid grid setups. With a standard 5-year warranty (extendable to 10–12 years upon online registration), the EQ4800 battery is designed for durability, boasting a 90% depth of discharge (DoD) and over 6,000 cycles. However, with proper management—leveraging Fox ESS’s advanced battery management software (BMS) and Fox Cloud 2.0—users can extend the battery’s lifespan well beyond its warranty period, potentially doubling its usable cycles. This blog post delves into the science behind Fox ESS’s technology, focusing on the H1(G2)/AC1(G2) and EQ4800, and explains how optimized management practices, supported by Fox’s software tools, contribute to exceptional battery longevity.

Understanding Battery Lifespan and Warranty

The Fox ESS EQ4800 battery, part of the Energy Cube series, is a high-voltage lithium-ion battery (likely lithium iron phosphate, LiFePO4, based on its cycle life and DoD). It offers 4.66 kWh per module, scalable up to 41.94 kWh with nine modules (one master, eight slaves). The warranty, which extends to 10–12 years with registration, guarantees at least 70% of nominal capacity after 6,000 cycles at 90% DoD under standard conditions. Battery lifespan depends on factors like cycle frequency, depth of discharge, charge/discharge rates (C-rates), temperature, and cell balancing. Fox ESS’s advanced BMS and software tools address these factors, enabling users to surpass the warranted lifespan through precise control and optimization.

The Science Behind Fox ESS’s Battery Technology

Fox ESS employs cutting-edge lithium-ion battery technology and sophisticated software to maximize the longevity of the EQ4800 battery. Below, we explore the scientific principles and engineering solutions that underpin its performance.

1. Lithium Iron Phosphate (LiFePO4) Chemistry

Science: The EQ4800 likely uses LiFePO4 cells, known for their thermal stability, low degradation rates, and high cycle life compared to nickel-manganese-cobalt (NMC) chemistries. LiFePO4 batteries have a robust crystal structure that withstands repeated lithium-ion intercalation/deintercalation during charge-discharge cycles, reducing capacity fade. They also have a lower risk of thermal runaway, enhancing safety and longevity.
Impact on Lifespan: LiFePO4 batteries can achieve 6,000–10,000 cycles at 90% DoD, compared to 3,000–5,000 for NMC. Fox ESS rates the EQ4800 for over 6,000 cycles, suggesting a conservative estimate that can be exceeded with proper management.
Fox ESS Implementation: The EQ4800’s high cycle life is supported by its BMS, which optimizes charging to minimize stress on the cathode and anode, preserving the structural integrity of the cells.

2. Advanced Battery Management System (BMS)

Science: The BMS is an electronic system that monitors and controls battery parameters (voltage, current, temperature, SoC, SoH) to ensure safe and efficient operation. It uses algorithms to balance cells, prevent overcharging/over-discharging, and regulate temperature, all of which reduce electrochemical stress.
Key Features:
- Cell Balancing: The BMS performs active or passive balancing to equalize voltage across cells, preventing uneven wear. Over time, unbalanced cells can lead to reduced capacity as weaker cells degrade faster.
- Overcharge/Over-Discharge Protection: The BMS enforces strict voltage cutoffs to avoid operating at extreme SoC levels (0% or 100%), which cause lithium plating or electrolyte decomposition.
- Temperature Regulation: The BMS monitors cell temperature and adjusts charging rates to maintain the optimal range (15°C–25°C), as high temperatures accelerate solid electrolyte interphase (SEI) layer growth, while low temperatures increase internal resistance.
Fox ESS Implementation: The EQ4800’s BMS supports CAN/RS485 communication for precise data exchange with the H1(G2)/AC1(G2) inverters, enabling real-time adjustments. It allows slow charging (e.g., 4A to 100%) for periodic cell balancing, as recommended by the Fox ESS community, which minimizes capacity fade.

3. High Round-Trip Efficiency

Science: Round-trip efficiency measures the energy retained during a charge-discharge cycle. Higher efficiency reduces energy losses as heat, which can degrade cells by accelerating SEI layer formation and electrode corrosion.
Impact on Lifespan: The H1(G2)/AC1(G2) inverters achieve up to 97% battery-to-AC discharge efficiency, minimizing heat generation during operation. This reduces thermal stress, preserving cell chemistry over thousands of cycles.
Fox ESS Implementation: The inverters’ transformerless design and dual MPPTs (maximum power point trackers) optimize energy transfer, ensuring minimal losses when charging the EQ4800 from solar or grid sources.

4. Temperature-Tolerant Design

Science: Lithium-ion batteries degrade faster at high temperatures due to accelerated chemical reactions (e.g., SEI growth, electrolyte breakdown) and slower at low temperatures due to increased internal resistance. The EQ4800’s “large temperature tolerance” allows operation across a wide range (-10°C to 55°C), but optimal performance occurs at 15°C–25°C.
Fox ESS Implementation: The EQ4800’s IP65-rated enclosure and natural cooling (no noisy fans) maintain stable operating temperatures, reducing thermal stress. The BMS adjusts charge/discharge rates based on temperature data, slowing operations during extremes to protect cells.

How Fox ESS Software Tools Enhance Longevity

Fox ESS’s software ecosystem, including the Fox Cloud 2.0 app and BMS integration, plays a critical role in extending the EQ4800’s lifespan beyond its warranty. Below, we detail how these tools enable optimal management practices.

1. Real-Time Monitoring via Fox Cloud 2.0

Feature: The Fox Cloud 2.0 app provides real-time data on SoC, SoH, voltage, current, and temperature, accessible via smartphone, tablet, or web portal.
Lifespan Benefit: Monitoring allows users to maintain a 20%–80% SoC range, avoiding high-voltage stress at 100% or lithium plating at 0%. For the EQ4800’s 4.66 kWh capacity, this means using ~2.8 kWh per cycle, which can extend cycle life by 30–50% (e.g., from 6,000 to 9,000+ cycles).
Science: Operating at partial SoC reduces strain on the battery’s electrodes, slowing the growth of the SEI layer and minimizing capacity fade. Studies show that limiting SoC to 80% can reduce degradation rates by up to 2x compared to full cycles.
Implementation: Users can set custom SoC limits (e.g., minSoC of 20%) via Fox Cloud 2.0, though some report occasional app instability requiring manual confirmation of settings.

2. Customizable Charge/Discharge Settings

Feature: Fox Cloud 2.0 allows users to configure charge periods, minSoC, and charge rates, prioritizing solar charging or low-cost grid charging during off-peak TOU periods.
Lifespan Benefit: Setting a low C-rate (e.g., 0.5C, or 2.33 kW for the EQ4800) reduces heat generation and mechanical stress on cells. For example, charging at 4A for balancing, as recommended by the Fox ESS community, minimizes electrode strain.
Science: Low C-rates reduce lithium-ion diffusion stress and heat, preserving the structural integrity of the cathode and anode. High C-rates (e.g., 1C) can cause micro-cracks in electrode materials, accelerating degradation.
Implementation: The H1(G2)/AC1(G2) supports low-rate charging, and the BMS enforces safe C-rates (e.g., max 4.48 kW for a 5-minute charge). Users can schedule grid charging during low-cost periods to avoid high-rate grid charging, further reducing stress.

3. Intelligent Energy Management

Feature: The BMS and Fox Cloud 2.0 use predictive algorithms to optimize energy flow based on solar production, weather forecasts, and TOU tariffs (e.g., Octopus Energy’s Agile or Flux).
Lifespan Benefit: By prioritizing solar charging during peak production (midday) and avoiding unnecessary cycling, the system minimizes Do jolloin

System: deep discharges. For instance, the software can switch to grid power when the battery reaches a 20% SoC, preserving the battery’s cycle life.

Science: Shallow cycling (e.g., 60% DoD) reduces electrochemical stress, as deep discharges (90% DoD) cause greater wear on the battery’s electrodes and electrolyte. Limiting cycles to 20%–80% SoC can increase cycle life by 30–50%, potentially extending the EQ4800’s life to 8,000–10,000 cycles.
Implementation: The Fox ESS system integrates with smart tariffs, automatically charging the battery during off-peak periods at low rates, reducing the number of deep cycles and optimizing solar energy use.

4. Cell Balancing and Maintenance

Feature: The BMS supports periodic slow charging (e.g., 4A to 100%) for cell balancing, as advised by the Fox ESS community.
Lifespan Benefit: Balancing ensures all cells operate at similar voltages, preventing overworked cells from degrading prematurely. Periodic balancing can extend the EQ4800’s lifespan by maintaining uniform cell health.
Science: Unbalanced cells lead to overcharging or over-discharging of individual cells, causing localized degradation. Slow charging allows the BMS未知

System: BMS to equalize cell voltages, reducing capacity fade over time.

Implementation: Users can schedule balancing cycles via Fox Cloud 2.0, ensuring the BMS performs maintenance without manual intervention. The system’s CAN/RS485 communication ensures precise control.

5. Integration with Smart Tariffs

Feature: The software supports integration with TOU tariffs, allowing automated charging during low-cost periods, which aligns with low C-rate charging to minimize battery stress.
Lifespan Benefit: Charging at optimal times reduces the frequency of high-rate grid charging, which can generate excess heat and accelerate degradation.
Science: High-rate charging increases internal resistance and heat, promoting SEI layer growth and electrode wear. Low-rate charging during off-peak periods mitigates these effects.
Implementation: Fox Cloud 2.0’s tariff integration ensures the EQ4800 charges efficiently, leveraging solar or low-cost grid power to reduce battery strain.

Practical Management Strategies for Extended Lifespan

To maximize the EQ4800’s lifespan beyond its warranty, users should adopt the following strategies, enabled by Fox ESS’s software and hardware:

Maintain 20%–80% SoC Range:
- Configure Fox Cloud 2.0 to keep the SoC between 20% and 80%. This reduces stress on the LiFePO4 cells, potentially extending cycle life to 9,000–10,000 cycles. For a 4.66 kWh module, use ~2.8 kWh per cycle.
- Why: Limits high-voltage stress and lithium plating, preserving cell capacity.
Minimize Deep Discharges:
- Set a minSoC of 20% to avoid deep discharges (e.g., 90% DoD). Use the grid to supplement power during high-demand periods.
- Why: Shallow cycles reduce electrochemical wear, doubling lifespan compared to full cycles.
Optimize Charge/Discharge Rates:
- Set the BMS to charge/discharge at 0.5C (2.33 kW) or lower. Avoid high-rate charging unless necessary for balancing.
- Why: Low C-rates minimize heat and mechanical stress, reducing SEI growth and electrode degradation.
Control Operating Temperature:
- Install the EQ4800 in a shaded, well-ventilated area (e.g., a garage) to maintain 15°C–25°C. The BMS adjusts rates during temperature extremes.
- Why: Optimal temperatures slow chemical degradation, preserving cell integrity.
Perform Regular Balancing:
- Schedule slow charging to 100% (e.g., 4A) every few months for cell balancing, as recommended by the Fox ESS community.
- Why: Balancing prevents uneven cell wear, maintaining overall battery health.
Leverage Solar and Grid Synergy:
- Use Fox Cloud 2.0 to prioritize solar charging during peak production and grid charging during off-peak TOU periods. This reduces battery cycling and stress.
- Why: Fewer cycles and lower rates extend cycle life by minimizing electrochemical stress.

Why the EQ4800 Can Outlast Its Warranty

The EQ4800’s 10–12-year warranty assumes standard usage at 90% DoD, delivering over 6,000 cycles with at least 70% capacity remaining. However, with optimized management:

Reduced DoD: Operating at 60% DoD (20%–80% SoC) can increase cycle life to 9,000–10,000 cycles, potentially lasting 15–20 years at one cycle per day.
Low C-Rates: Charging/discharging at 0.5C or lower reduces thermal and mechanical stress, further slowing degradation.
Temperature Control: Maintaining 15°C–25°C prevents accelerated SEI growth and capacity fade.
BMS Optimization: The Fox ESS BMS’s balancing, protection, and monitoring features ensure consistent cell health, preventing premature failure.

For example, a user cycling the EQ4800 daily at 60% DoD, 0.5C, and 20°C could achieve ~9,000 cycles, translating to ~24 years of use with ~80% capacity remaining, far exceeding the 10–12-year warranty. Even at 70% capacity, the battery remains functional for less demanding applications.

Considerations and Limitations

While Fox ESS’s technology is advanced, users should be aware of potential limitations:

App Stability: Some users report issues with Fox Cloud 2.0, such as settings not saving or timeouts, which may require manual checks or community solutions like the Energy Stats app.
Compatibility: The EQ4800 is primarily compatible with Fox ESS inverters (H1/AC1 series), limiting flexibility for mixed-brand setups.
User Knowledge: Optimizing settings (e.g., minSoC, balancing cycles) requires some technical understanding, though Fox Cloud 2.0’s interface is user-friendly.

To overcome these, users can join the Fox ESS Community Forum for support and use alternative monitoring tools like Home Assistant via Modbus for local control.

Conclusion

The Fox ESS H1(G2)/AC1(G2) with EQ4800 battery is engineered for longevity, leveraging LiFePO4 chemistry, a sophisticated BMS, high round-trip efficiency, and temperature-tolerant design. The Fox Cloud 2.0 software enhances these features by enabling precise SoC management, low-rate charging, intelligent energy flow, and cell balancing, all of which reduce electrochemical and thermal stress. By adopting best practices—maintaining 20%–80% SoC, minimizing deep discharges, optimizing C-rates, controlling temperature, and scheduling balancing cycles—users can extend the EQ4800’s lifespan to 15–20 years or more, well beyond its 10–12-year warranty. With proper management and Fox ESS’s robust software tools, this battery system can deliver exceptional value and sustainability for residential energy storage.
